| Brand Name: | OEM |
| Model Number: | DSJ |
| MOQ: | 1 |
| মূল্য: | $1,200-1,500 |
| Attribute | Value |
|---|---|
| Warranty | 1 year |
| Customized support | OEM, ODM |
| Power Source | Electric |
| Application | Power construction, industrial applications |
| Dimensions | 950 × 500 × 400 mm |
| Weight | 150 KG |
| Cable diameter range | 30-180mm |
| Electric motor | 1.1KW × 2 |
| Pulling Speed | 8 m/min |
| Pulling Capacity | 700 KGS |
| Type | Cable laying equipment |
| Capacity | 1KN |

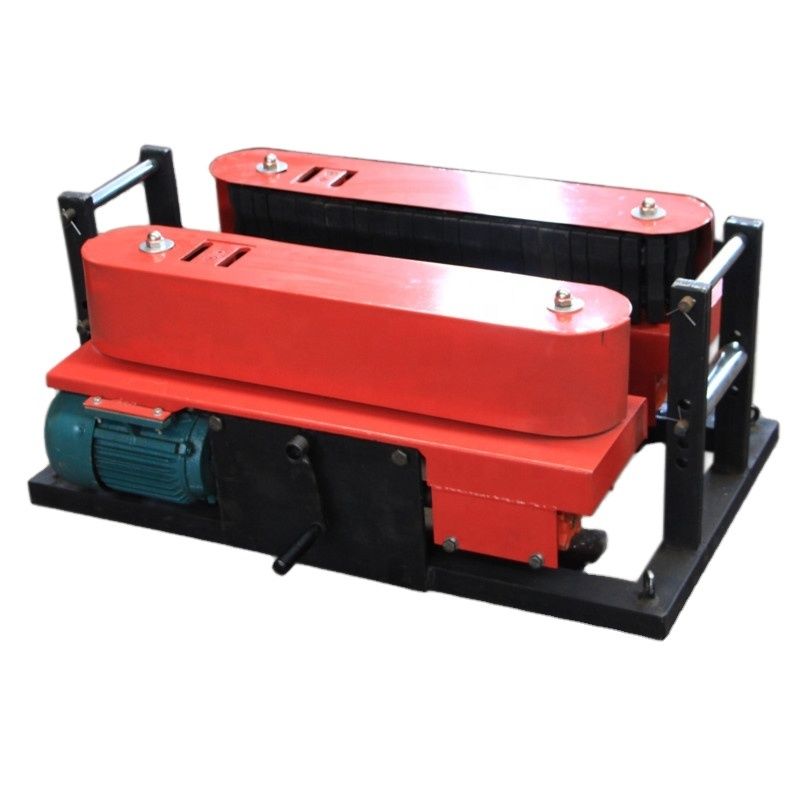

The DSJ-180 Electric Engine Powered Cable Laying Equipment is designed for efficient cable transmission in power, petroleum, chemical, and industrial construction applications. Ideal for power plant extensions, substations, and city network transmission projects.
| Specification | DSJ-150 | DSJ-180 |
|---|---|---|
| Line pulling (KGS) | 700 | 900 |
| Pulling Speed (m/min) | 8 | 6 |
| Electric motor | 1.1KW × 2 | 1.5KW × 2 |
| Dimensions | 950 × 500 × 400 mm | 1020 × 590 × 400 mm |
| Weight (KGS) | 150 | 180-200 |
| Cable diameter range | Φ30 - 180 mm | Φ30 - 200 mm |
| Transmission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
